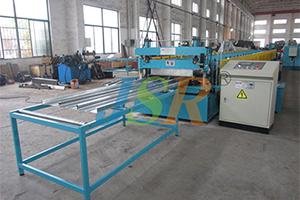

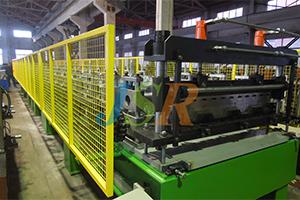

Roll Forming line for Floor Decking
To fulfill decking manufacturer’s high quality deck production demand, we provide floor deck rollforming line and decking rollformers with high precision rollers can roll form 0.8mm to 1.2mm galvanized steel sheets into different shapes like V shape, U shape and trapezoid shape. The roll forming speed reaches up to 15m/min. Floor decking roll former is easy to operate and control, allowing workers to master in a short period so as to enhance production efficiency.
Specifications| Machine Specifications | |
| Weight | About 15000kgs |
| Size | About 16m *1.8m *1.5m (Length *Width *Height) |
| Suitable Raw Material | |
| Material | Galvanized or Galvalume Coils |
| Thickness | 0.8-1.2 mm |
| Yield Strength | 235 Mpa |
| Main Technical Parameters | |
| Roll Forming Speed | 10-15/min |

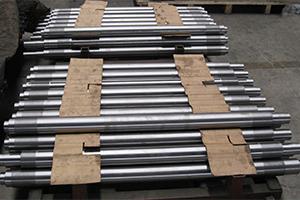

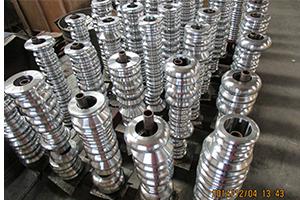

| Forming rollers material | No.45 steel, coated with chromed treatment |

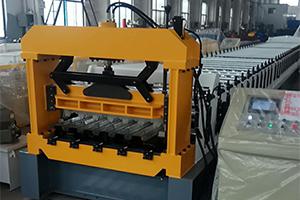

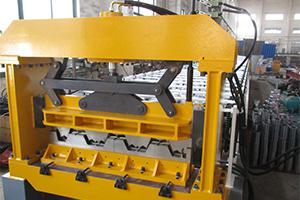

| Cutter material | CR12 mould steel, with quenched treatment |

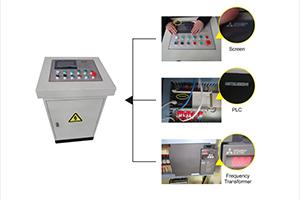

| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 2*11 kw |
| Hydraulic unit motor power: 5.5 kw | |
| Electric voltage | According to customer's requirement |

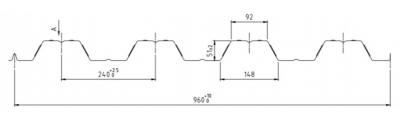

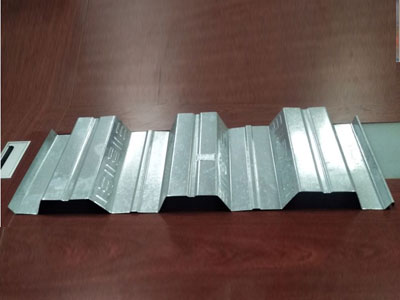

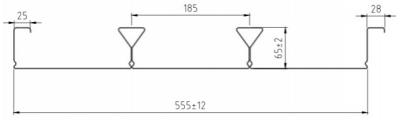

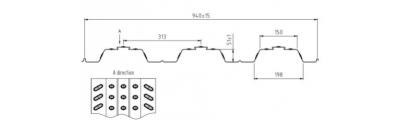

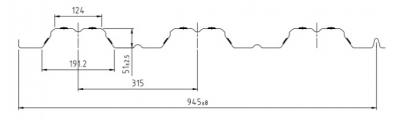

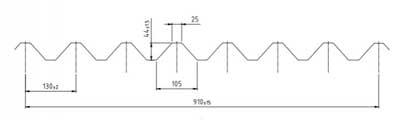

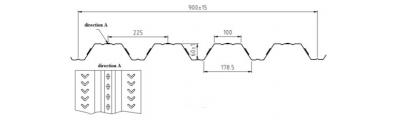

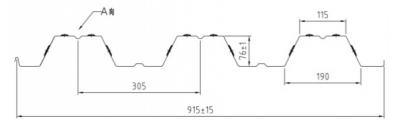

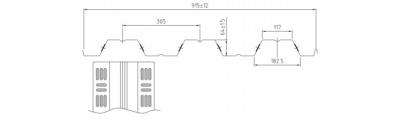

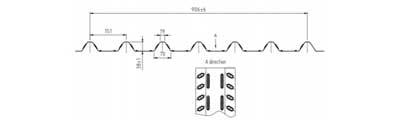

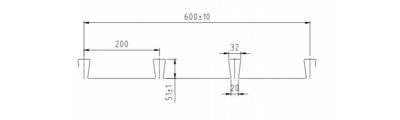

10+ standard floor decking profiles are available and we can make custom profiles according to your requirements on profile, raw material, width range and other aspects.
Wuxi JingShiRui Machinary Factory is a manufacturing enterprise backed by advanced technologies in roll forming industry. Since its establishment, JSR Machinery has been specializing in the provision of high quality high productivity
metal processing equipment for global customers. Professional knowledge along with abundant experience enable us to design and manufacture custom roll forming line benefiting your business.
