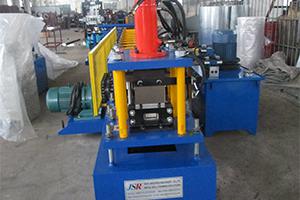

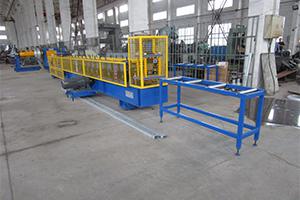

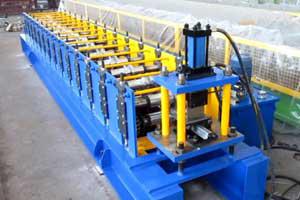

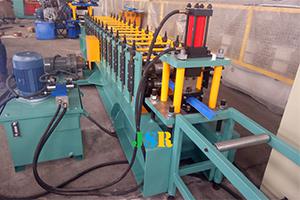

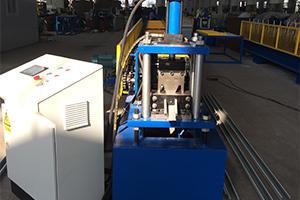

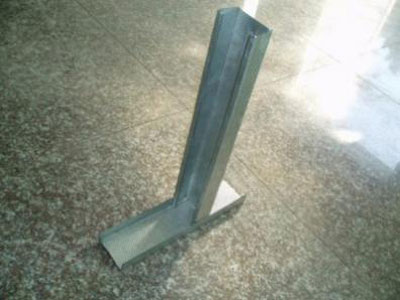

Roll Forming Line for Stud and Track

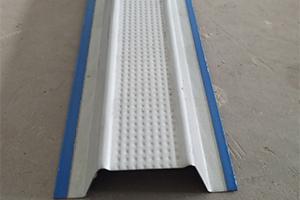

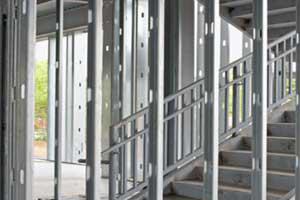

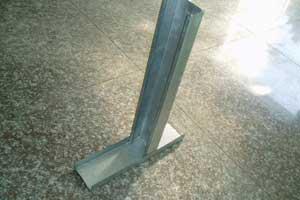

The roll forming machine for stud and track production is features a highest forming speed of 20m/min. Stud and track produced by our roll former are within the thickness of materials 0.3mm-0.6mm. In addition, we can customize roll forming line for you drywall stud &track production depending on your requirements on material.
Specifications| Machine Specifications | |
| Weight | About 3500kgs |
| Size | About 6m × 1.6m × 1.5m (length× width× height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized steel coils |
| Thickness | 0.3-0.6mm |
| Coil width | 153mm and 175mm |
| Yield strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming roll stations | 12-14 |
| Diameter of forming roller shafts | 60mm |
| Roll forming speed | 15-20m/min |
| Forming roller material | No.45 steel, with chrome plating treatment |
| Cutter material | CR12 mold steel, with quench heat treatment |
| Control system | PLC and converter |
| Electric power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer's requirement |
Wuxi JingShiRui Machinary Factory is a manufacturing enterprise backed by advanced technologies in roll forming industry. Since its establishment, JSR Machinery has been specializing in the provision of high quality high productivity
metal processing equipment for global customers. Professional knowledge along with abundant experience enable us to design and manufacture custom roll forming line benefiting your business.
