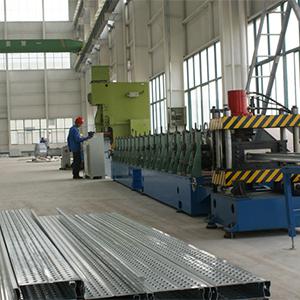

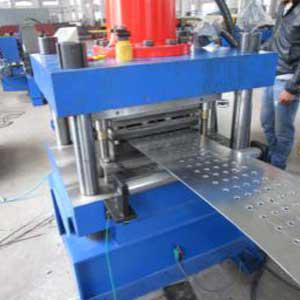

Roll Forming Line for Scaffolding Plank

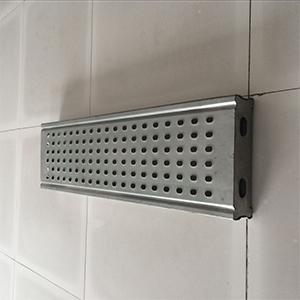

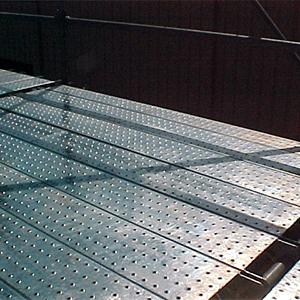

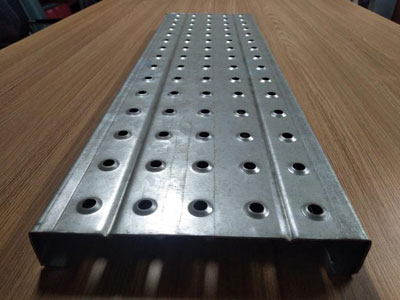

Scaffolding is a temporary working platform to ensure the smooth advance of a variety of construction processes. Scaffold deck provides a solid standing surface for working platform. Compared with other scaffolding, steel scaffold deck has better loading capacity, longer service life, along with ease of mounting and dismounting.

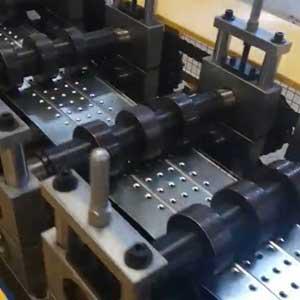

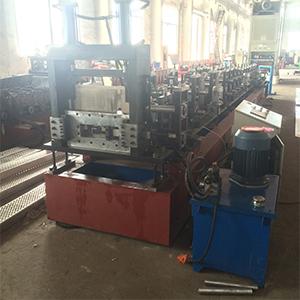

Our scaffold deck roll forming machine allows for quick forming of 0.6-2.0mm thick steel coils. Configured with punching device and post-shearing system enables to produce scaffold decks with various ideal lengths. Full forming speed at 10m/min. High precision rollers ensure the final products’ accuracy, and the use of Siemens or Mitsubishi operating system makes it easy to operate, which enhance production efficiency while guaranteeing quality.
In addition, we can customize the very scaffold deck roll forming equipment corresponding to your requirements on the profile, material and so on.
Specifications| Machine Specifications | |
| Weight | About15000kgs |
| Install Size | About 20m × 1.7m × 1.5m (length × width × height) |
| Color | Main color: green |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Steel coils |
| Thickness | 1.6-2.0mm |
| Yield strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming roller stations | 16 |
| Diameter of forming roller shafts | 80mm |
| Roll forming speed | 10m/min |
| Forming roller material | GCR15steel, coated with quench heat treatment |
| Cutter material | CR12 mold steel, with quench heat treatment |

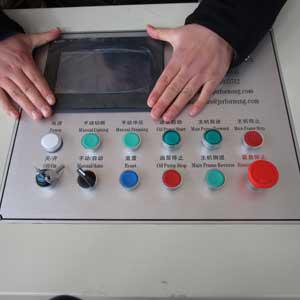

| Control system | PLC and converter |
| Electric power requirement | Main motor power: 15kw+22KW |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customer's requirement |

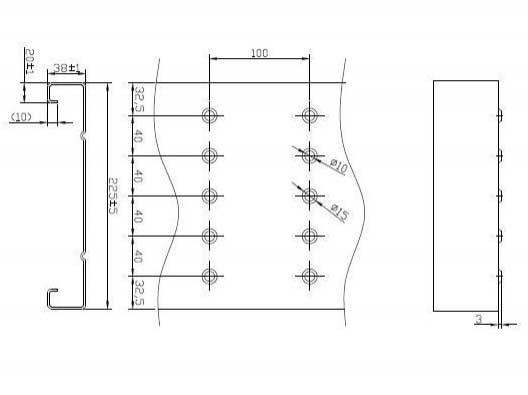

You Can Choose the Common Profiles Below or You Can Customized

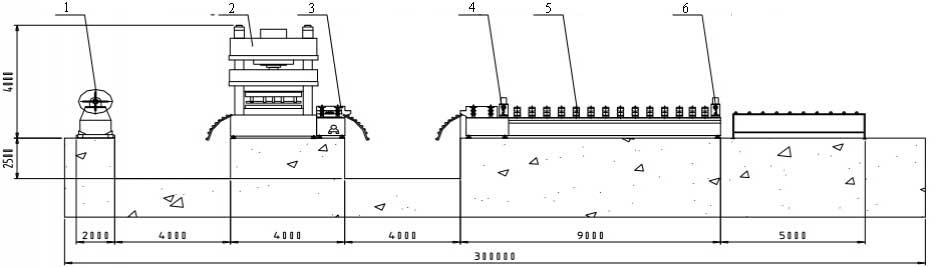

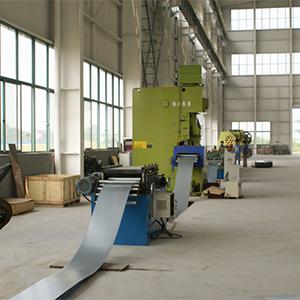

- Uncoiler
- Punching machine
- Servo Feeding Device
- Motching device
- Roll forming systen
- Post cutting device
