Roll Forming Line for Cable Tray

Roll Forming Line for Cable Tray

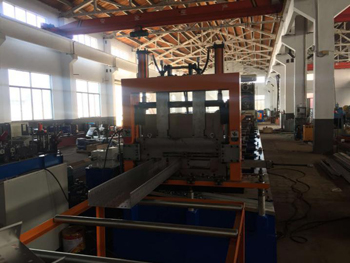

Description

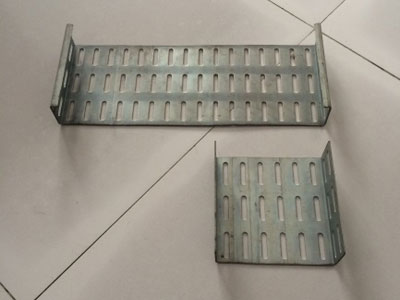

Cable tray forming machine is used for producing cable tray through cold roll forming of hot dip galvanized steel coils with the thickness of 0.6-2.0mm.

Specifications

The Line’s Specifications
Weight	About 50000kgs
Whole line’s dimension	About 45m x 3m x 1.5m (length x width x height)
Color	Main color: green
Color	Warning color: yellow
Suitable Raw Material
Material	Galvanized or Galvalume Coils
Thickness	0.6-2.0mm
Coil width	According to products size
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	About 24
Diameter of forming rollers shafts	75mm
Roll Forming Speed	10-15m/min
Production Speed	4-6m/min
Forming rollers material	Gcr15 mould steel, with quenched treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	Panasonic PLC and Yaskawa Converter
Electric Power requirement	Main motor power: 4x5.5kw
Electric Power requirement	Hydraulic unit motor power: 5.5kw
Electric voltage	According to customer’s requirement

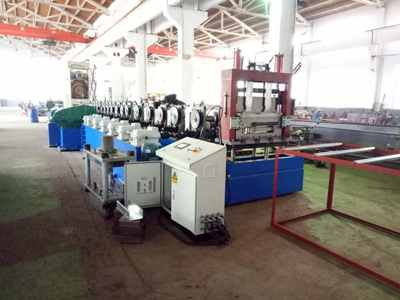

Main Components
Decoiler (manual and automatic for options)	1 set
Guiding device	1 set
Leveling system	1 set

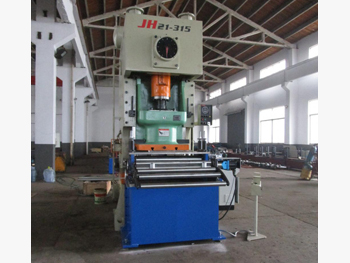

Punching machine	1 set

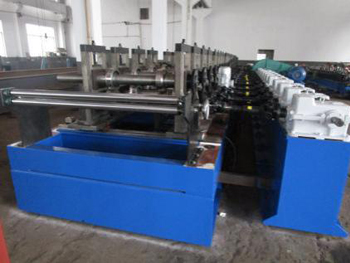

Roll Forming system	1 set
Hydraulic Cutting system	1 set
PLC control box	1 set
Hydraulic unit	1 set
Run outs tables	1 set

Our strut channel roll forming machine can be customized according to your requirements of size and raw material. We are committed to guarantee your roll forming system top performances after commissioning. With ease to install and operate, it can start working automatically after refilled with hydraulic fluid according to the instructions. You can refer to our provided video or consult our professionals for help when you encounter any problems with installation and use.

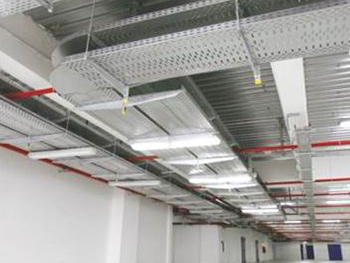

Gallery

Wuxi JingShiRui Machinary Factory is a manufacturing enterprise backed by advanced technologies in roll forming industry. Since its establishment, JSR Machinery has been specializing in the provision of high quality high productivity metal processing equipment for global customers. Professional knowledge along with abundant experience enable us to design and manufacture custom roll forming line benefiting your business.
