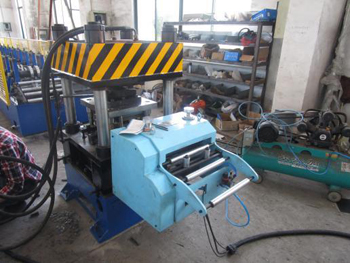

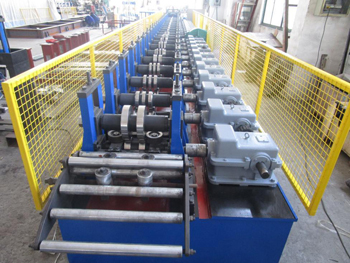

Roll Forming Line for Strut Channel

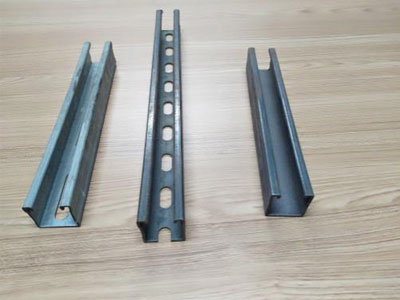

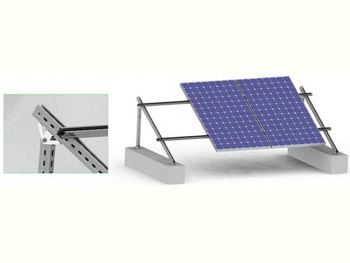

Solar strut channel is well suitable to install and fix photovoltaic solar panels for secure attachments.
Specifications| Machine Specifications | |
| Weight | About 10000kgs |
| Size | About 20m x 1.0m x 1.0m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized steel |
| Thickness | 1.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 22 |
| Diameter of forming rollers shafts | 60mm |
| Working Speed | 4m/min |
| Forming rollers material | Gr15 mould steel, with quenched treatment |
Our strut channel roll forming machine can be customized according to your requirements of size and raw material. We are committed to guarantee your roll forming system top performances after commissioning. With ease to install and operate, it can start working automatically after refilled with hydraulic fluid according to the instructions. You can refer to our provided video or consult our professionals for help when you encounter any problems with installation and use.
Gallery
Wuxi JingShiRui Machinary Factory is a manufacturing enterprise backed by advanced technologies in roll forming industry. Since its establishment, JSR Machinery has been specializing in the provision of high quality high productivity
metal processing equipment for global customers. Professional knowledge along with abundant experience enable us to design and manufacture custom roll forming line benefiting your business.
