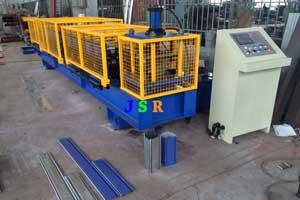

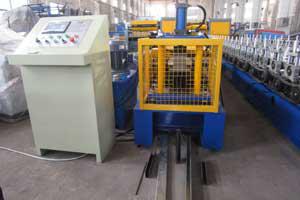

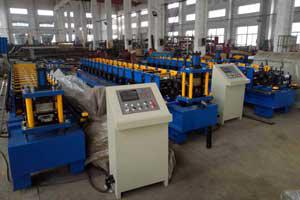

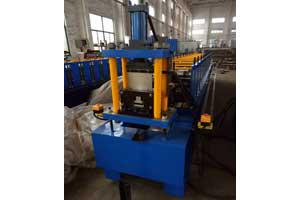

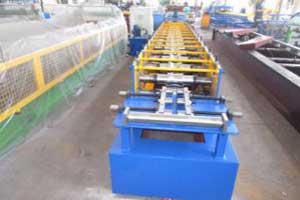

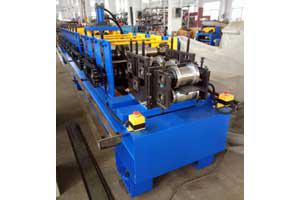

Roll Forming Line for Slat

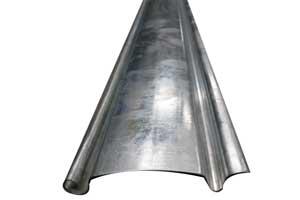

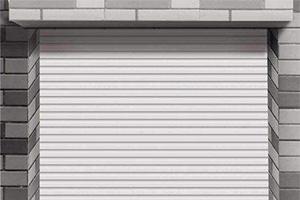

We provide roll forming machine that produce roll up door slats in variety of materials including No.45 steel and chrome plated. The slat rollforming line is capable of forming 0.4-0.6mm thick steel coils into slats at a highest speed of 20m/min. High precision rollers guarantee the rolling door slats’ precision.
Specifications| Machine Specifications | |
| Weight | About 5000kgs |
| Size | About 6m × 1.2m × 1.5m (length × width × height) |
| Suitable Raw Material | |
| Material | Pre-painted galvanized steel coils |
| Thickness | 0.4-0.6mm |
| Yield strength | 235MPa |
| Main Technical Parameters | |
| Diameter of forming roller shafts | 55mm |
| Roll forming speed | 15-20m/min |
| Forming roller material | No.45 steel, chrome plated |

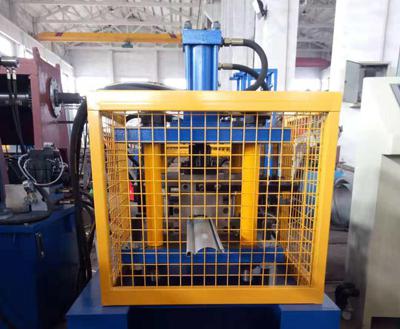

| Cutter material | CR12 mold steel, with quench heat treatment |
| Control system | PLC and converter |
| Electric power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer's requirement |

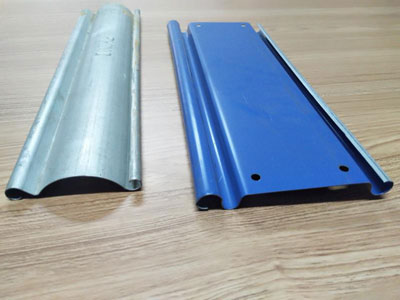

In addition to the standard profile of the slat, we can tailor roll forming line for wide range shapes rolling door slat such as flat slats, curved slats, and clamshell slats, etc.
Wuxi JingShiRui Machinary Factory is a manufacturing enterprise backed by advanced technologies in roll forming industry. Since its establishment, JSR Machinery has been specializing in the provision of high quality high productivity
metal processing equipment for global customers. Professional knowledge along with abundant experience enable us to design and manufacture custom roll forming line benefiting your business.
